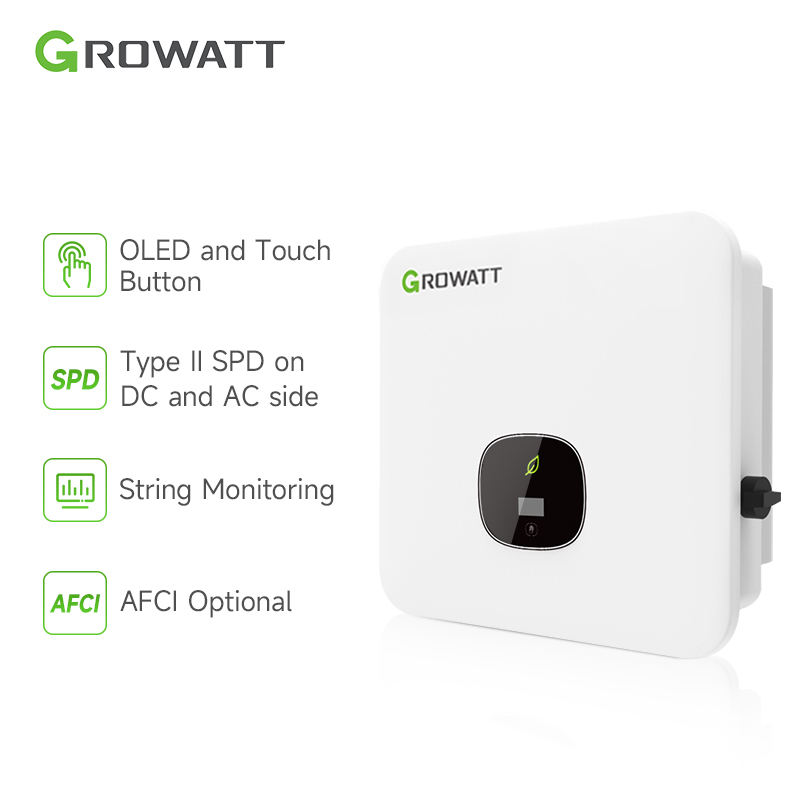

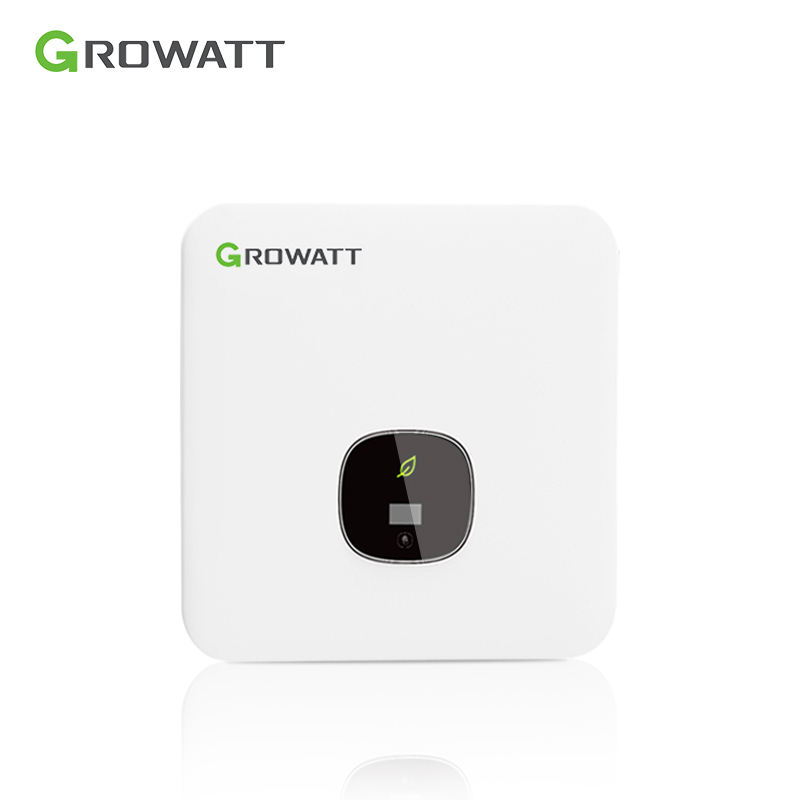

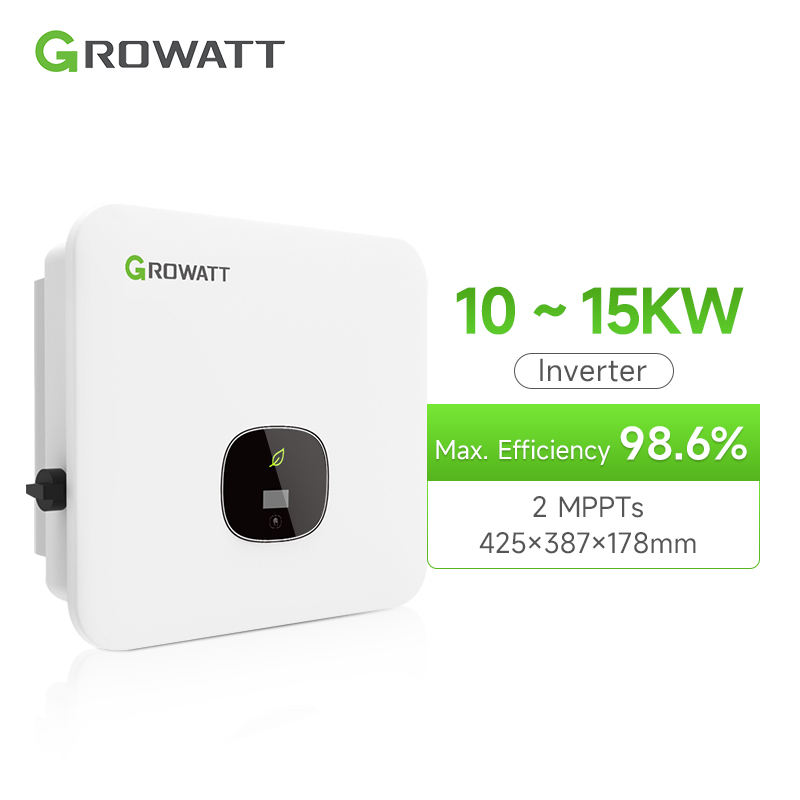

Growatt 10KW 11KW 12KW 13KW 15KW 3 Phase Solar Inverter
|
Datasheet |
MOD 10KTL3-X |
MOD 11KTL3-X |
MOD 12KTL3-X |
MOD 13KTL3-X |
MOD 15KTL3-X |
|
Input data (DC) |
|||||
|
Max. recommended PV power(for module STC) |
15000W |
16500W |
18000W |
19500W |
22500W |
|
Max. DC voltage |
1100V |
||||
|
Start voltage |
160V |
||||
|
Nominal voltage |
580V |
||||
|
MPPT voltage range |
140V-1000V |
||||
|
No. of MPP trackers |
2 |
||||
|
No. of PV strings per MPP tracker |
1 |
1 |
1/2 |
1/2 |
1/2 |
|
Max. input current per MPP tracker |
13A |
13A |
13/26A |
13/26A |
13/26A |
|
Max. short-circuit current per MPP tracker |
16A |
16A |
16/32A |
16/32A |
16/32A |
|
Output data (AC) |
|||||
|
AC nominal power |
10000W |
11000W |
12000W |
13000W |
15000W |
|
Max. AC apparent power |
11000VA* |
12100VA |
13200VA |
14300VA |
16500VA |
|
Nominal AC voltage(range*) |
220V/380V, 230V/400V (340-440V) |
||||
|
AC grid frequency(range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
||||
|
Max. output current |
16.7A |
18.3A |
20A |
21.7A |
25A |
|
Adjustable power factor |
0.8leading…0.8lagging |
||||
|
THDi |
<3% |
||||
|
AC grid connection type |
3W+N+PE |
||||
|
Efficiency |
|||||
|
Max.efficiency |
98.6% |
||||
|
European efficiency |
98.1% |
98.1% |
98.2% |
98.2% |
98.2% |
|
MPPT efficiency |
99.9% |
||||
|
Protection devices |
|||||
|
DC reverse polarity protection |
Yes |
||||
|
DC switch |
Yes |
||||
|
AC/DC surge protection |
Type III / Type III |
||||
|
Insulation resistance monitoring |
Yes |
||||
|
AC short-circuit protection |
Yes |
||||
|
Ground fault monitoring |
Yes |
||||
|
Grid monitoring |
Yes |
||||
|
Anti-islanding protection |
Yes |
||||
|
Residual-current monitoring unit |
Yes |
||||
|
AFCI protection |
Optional |
||||
|
General data |
|||||
|
Dimensions (W / H / D) |
425/387/178mm |
||||
|
Weight |
14kg |
14kg |
16kg |
16kg |
16kg |
|
Operating temperature range |
–25°C ... +60°C |
||||
|
Nighttime power consumption |
< 1W |
||||
|
Topology |
Transformerless |
||||
|
Cooling |
Natural convection |
||||
|
Protection degree |
IP66 |
||||
|
Relative humidity |
0-100% |
||||
|
Altitude |
4000m |
||||
|
DC connection |
H4/MC4(Optional) |
||||
|
AC connection |
Connector |
||||
|
Display |
OLED+LED/WIFI+APP |
||||
|
Interfaces: USB/RS485/WIFI /GPRS//LAN/RF |
yes/yes/Optional/Optional/Optional/Optional |
||||
|
Warranty: 5 years / 10 years |
Yes /Optional |
||||
|
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger |
|||||
